How To Use Lensatic Compass And Map / Lensatic Compass / Action locate your starting point and objective on the map.

How To Use Lensatic Compass And Map / Lensatic Compass / Action locate your starting point and objective on the map.. The case cover should be pointing toward the top of the map. Using your location as a pivot, rotate the compass until north on the bezel is pointing to the top of the map and the compass housing orienting lines are parallel with the map's vertical grid lines. Hold your elbows tight against your body and the compass near your waist to get your bearings and find out which direction you are facing! Place the fully opened compass on the map with the scale edge alongside a north/south meridian (longitudinal line, grid line). Given a field table, a standard.

A short video on what a lensatic compass is, what the different components of a military compass are, and how to use a compass when conducting land navigatio. Pencil, paper, and a compass in daylight. This is the corrected version of my previous, with actually valid information this time. Using your location as a pivot, rotate the compass until north on the bezel is pointing to the top of the map and the compass housing orienting lines are parallel with the map's vertical grid lines. North arrow of the lensatic compass will point 11 degrees west of true north.

How To Use A Lensatic Compass from image.slidesharecdn.com

I make no warranties, expressed or implied with respect to this web site or downloaded files. This website does not have classes or instructors. Place the fully opened compass on the map with the scale edge alongside a north/south meridian (longitudinal line, grid line). Shows how to use the usgi issue lensatic compass to orient the map,. You can get highly accurate maps of almost any place in the world designed to work with a lensatic compass. Rotate the bezel so that n (north) is lined up with the direction of travel arrow. How to use the lensatic compass finding real position on map by compass take two azimuth bearing on separate characteristic points visible on the terrain and indicated on the map. Orient the map with magnetic north a round lensatic compass has no straight edge to align.

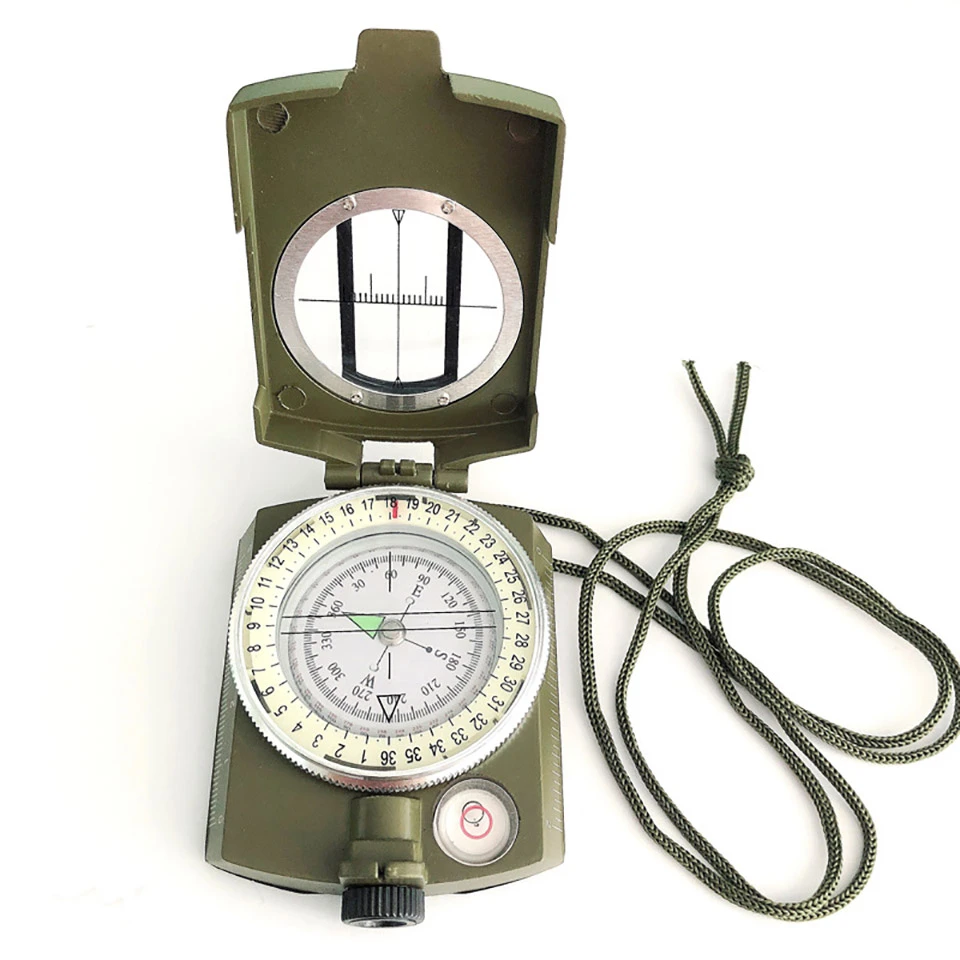

The cover protects the compass and has a sighting wire to help you sight an object in the distance, while the base has the dial and the magnetic compass components.

Line the azimuth (course bearing) on the map underneath the index line on your compass. A short video on what a lensatic compass is, what the different components of a military compass are, and how to use a compass when conducting land navigatio. Or, 2) without using math and a protractor, you may align your map to the real world using the lensatic compass and then set your magnetic back azimuth on the face of the compass and directly draw the back azimuth using the edge of the compass when properly set up. Put the compass on a level map. The parts of a compass include the base, top cover, lens bracket, and the thumb loop. A recruit with charlie company, 1st recruit training battalion, uses a lensatic compass while searching for location points during land navigation aboard marine corps recruit depot parris island. To use a lensatic compass, you know where your starting point is, and then you sight on a landmark that you line up with a bearing that matches the direction or location you want to go. Orient the map with magnetic north a round lensatic compass has no straight edge to align. Turn the map and the compass together until the north Place the fully opened compass on the map with the scale edge alongside a north/south meridian (longitudinal line, grid line). Place your compass on the map with the direction of travel arrow pointing toward the top of the map. Pencil, paper, and a compass in daylight. How to get your map and compass to face the same direction.

I make no warranties, expressed or implied with respect to this web site or downloaded files. Action locate your starting point and objective on the map. Step action 1 open the compass so that the cover is fully extended. Place your compass on the map with the direction of travel arrow pointing toward the top of the map. Compass was within 3 degrees (20 mils) of.

How To Use A Compass Compass Map Navigation Guide from taskandpurpose.com

The next lesson of how to use a military compass is using compass on a map also a very important answer to how to use a military compass. Locate property lines, using the property's legal description, as noted on the deed. Place your compass on the map with the direction of travel arrow pointing toward the top of the map. Compass was within 3 degrees (20 mils) of. Action locate your starting point and objective on the map. The lensatic compass is very versatile. The edge of the compass baseplate is now pointing in the direction of the visible landmark from which you took your bearing. Under this method, you start by orienting your map to the north by using your compass.

The lensatic compass is comprised of different parts compared to a baseplate compass.

Make sure the level bubble shows that you are at level, that is if your compass is equipped with one. You can also use it as you would a standard compass by pulling back the lid and magnifying glass to fully show directions north, south, east, and west. Learn to navigate using a topographic map and a compass. Put the compass on a level map. The techniques employed when using the lensatic compass are as follows: Place the fully opened lensatic compass on map with the scale edge alongside the magnetic north line of the declination diagram.adjust the map (with compass on it) so that the compass cover points to magnetic north (north arrow of compass is pointing directly to the index line). North arrow of the lensatic compass will point 11 degrees west of true north. First, open the compass to its fullest so that the cover forms a straightedge with the base. How should i set my gps and compass? Place the fully opened compass on the map with the scale edge alongside a north/south meridian (longitudinal line, grid line). The case cover should be pointing toward the top of the map. Locate property lines, using the property's legal description, as noted on the deed. Then on your oriented map, take the angle degree reading according to (a), and then draw two rays from each of the above points according to the

I generally line it up with a north/south gridline. The case cover should be pointing toward the top of the map. Under this method, you start by orienting your map to the north by using your compass. Lay the compass completely open. Then on your oriented map, take the angle degree reading according to (a), and then draw two rays from each of the above points according to the

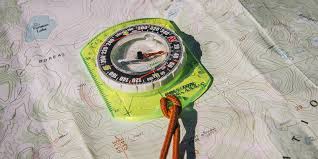

How To Use A Lensatic Compass Carnegie Museum Of Natural History from carnegiemnh.org

Using a compass magnetic azimuths are determined with the use of magnetic instruments, such as lensatic and m2 compasses. Using your location as a pivot, rotate the compass until north on the bezel is pointing to the top of the map and the compass housing orienting lines are parallel with the map's vertical grid lines. The next lesson of how to use a military compass is using compass on a map also a very important answer to how to use a military compass. I generally line it up with a north/south gridline. Place the fully opened compass on the map with the scale edge alongside a north/south meridian (longitudinal line, grid line). Or, 2) without using math and a protractor, you may align your map to the real world using the lensatic compass and then set your magnetic back azimuth on the face of the compass and directly draw the back azimuth using the edge of the compass when properly set up. I make no warranties, expressed or implied with respect to this web site or downloaded files. Compass readings set the direction from one property corner to another.

Lay the compass completely open.

Two parts of this line include the sighting wire, which you can align with things that are visible on the map, and the center of the rotating compass card. Put the compass on a level map. Take your lensatic compass and open it up all the way so it is one flat line. The lensatic compass is also referred to as the military compass since it is used mostly by the us military. How should i set my gps and compass? First, open the compass to its fullest so that the cover forms a straightedge with the base. The cover will form a straightedge with the base. You can also use it as you would a standard compass by pulling back the lid and magnifying glass to fully show directions north, south, east, and west. Place the fully opened lensatic compass on map with the scale edge alongside the magnetic north line of the declination diagram.adjust the map (with compass on it) so that the compass cover points to magnetic north (north arrow of compass is pointing directly to the index line). Pencil, paper, and a compass in daylight. The case cover should be pointing toward the top of the map. Make sure the level bubble shows that you are at level, that is if your compass is equipped with one. How to use a compass to find your property lines.
